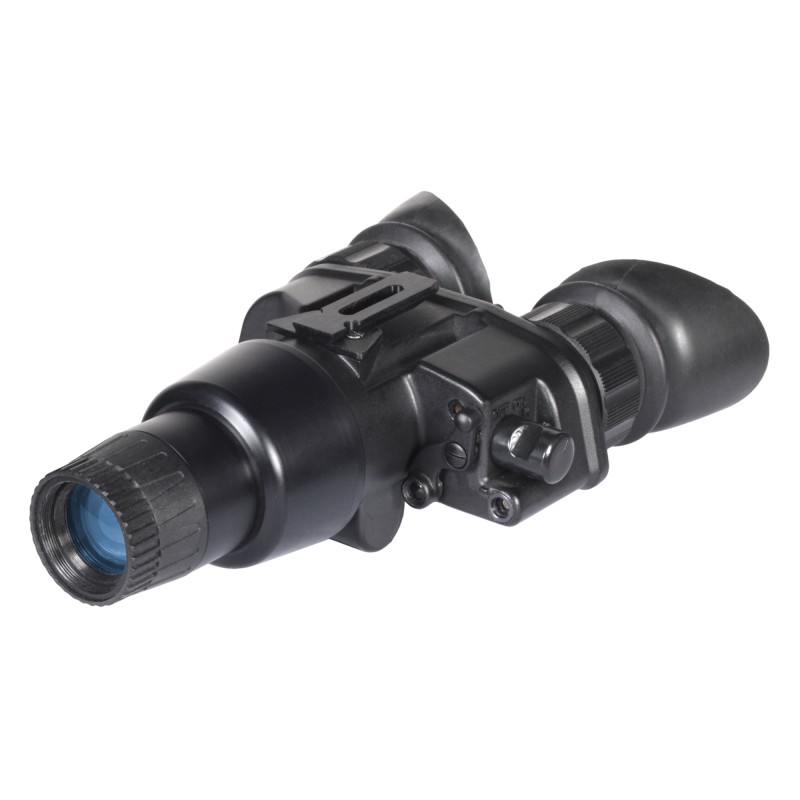

ATN PVS7-3P, Night vision Goggle ATN-CORPORATION

PVS7

The ATN PVS7-3P is a full robust, dependable, high performance night vision goggle. This model is identical to ATN/PVS-7 model adopted as a standard issue to US Army ground troops and designed to assist viewing and provide reliable service in the most unfavorable conditions. The ATN PVS7-3P also incorporates an infrared illuminator with a momentary and continuous on switching function. Infrared operation and low battery indicators are displayed within the users field of view. The ATN PVS7-3P comes complete with a lightweight, fully adjustable military head strap that allows for comfortable long- term use. Full U.S. Mil Spec body with goggle assembly, soft carrying case, demist shield, sacrificial filter for objective lenses, shoulder strap, head mount assembly with 3 brow pads, lens tissue, neck cord and front lens cap.

Features:

- Intensifier Tube: 3P
- Resolution: 64-72 lp/mm
- Photocathode Type: Thin-Filmed/Auto-Gated
- Signal to Noise Ratio: 24 typical
- Figure of Merit: 1800 typical
- Magnification: 1x
- Photocathode Sensitivity: 2000-2800
- Lens system Element: F 1.17:26 mm
- Diopter adjustment: +2/-6
- FOV 408
- Controls: Direct
- Range of focus: 0.25 m to infinity
- Power supply: 2 - AA Batteries (Alkaline) or 1 - BA-5567/U (Lithium)
- Infrared illuminator: Built-in Flood
- Storage temperature: -50 to +708C
- Environmental rating: Waterproof
- Battery life: 60 w/o IR
- Operation temperature: -40 to +508C
- Dimensions: 162 x 76 x 152 mm 6.4" x 3" x 6"
- Weight: 0.65 kg / 1.4 lbs
- Download Manual
- Owner's Manual
- Standard Military Issue
- Multi-purpose: Handheld, head-mounted, helmet-mounted
- Lightweight
- Equipped with momentary or continuous IR switch
- Internal low battery and IR indicators
- Combat proven
- Water and fog resistant
