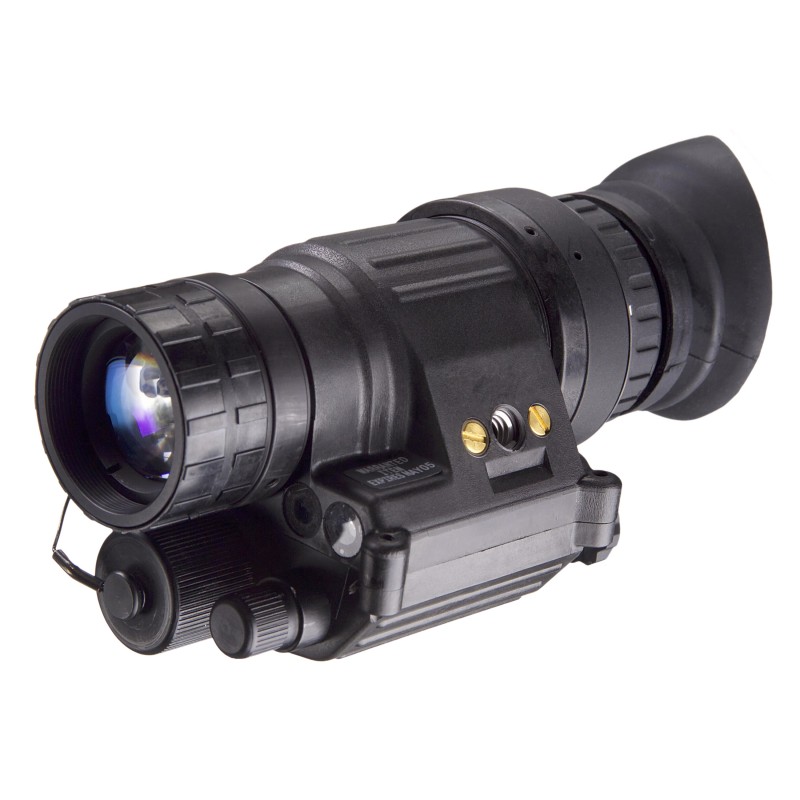

PVS14-4 multipurpose night vision mono ATN-CORPORATION

PVS14-4 Night Vsion Mono Multi Purpose

The ATNs PVS14 are rugged, lightweight and versatile night vision monoculars, designed for the most demanding of nighttime applications. The PVS14 can be handheld, head/helmet-mounted for hands-free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14 is an outstanding choice for professional night vision applications.

Features:

- US Military design
- Multi-Purpose unit
- Handheld monocular
- Hands-free goggle (optional helmet mount)
- Mil-Spec headgear

Specifications:

- Magnification: 1x ±0.03
- Lens System: 27mm; F1.2
- Proshield Lens Coating: Yes
- Field of View: 40°
- Range of Focus: 0.25m to Infinity
- Diopter Adjustment: -5 to +2
- Controls: Direct
- Manual Gain Control: Yes
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 x 1.5 V AA Battery
- Battery Life: 50 Hours
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -60°F to 120°F
- Storage Temperature: -60°F to 185°F
- Dimensions: 4.50x 2 x 2.25
- Weight: .78 lbs
- Color: Black

Tube Specifications:

- High Quality 4 Gen Image Intensifier Tube
- Description: Autogated/Filmless
- Generation: 4
- Photocathode Type: Filmless GaAs
- Resolution: 64-72 (lp/mm)
- Signatl to Noise Ratio: 25-30
- Figure to Merit: 2000 Typical
- MTTF (Mean Time Before Failure): 10,000 Hours
