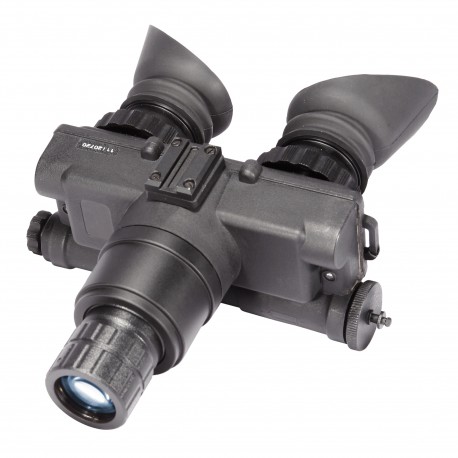

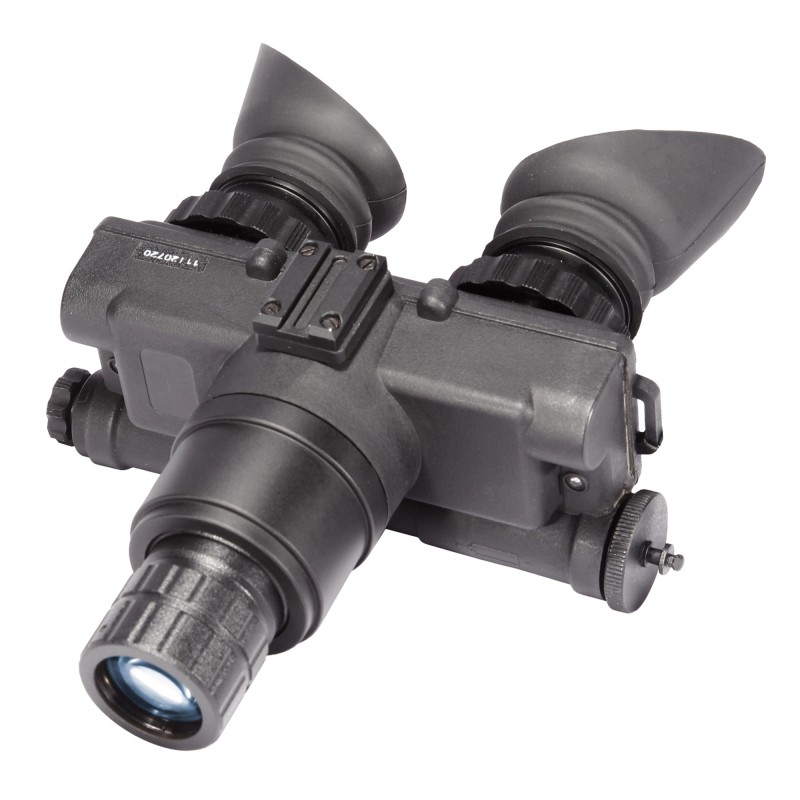

NVG7-3P, Night vision Goggle ATN-CORPORATION

NVG7 Goggles

Lightweight, rugged and a top notch performer the NVG-7-3P is an exceptional choice for hands-free usage. This model features high resolution image intensifier, auto-brightness, and bright source shut-off.
NVG-7-3P goggles also have a built-in IR for total darkness with indicator ON light within the FOV and flip. One CR123A, case and manual are included. ATN NVG-7-3P is an excellent choice for hands-free night vision applications.

Features:

- Lightweight, compact rugged Goggle system
- Multi-purpose: Hand-held, head-mounted or helmet-mounted
- Comfortable, flip-up headgear
- Multi-coated all-glass optics
- Wide angle infrared illuminator
- Adjustable Interpupillary Distance
- Optional 3x, 5x and 8x lenses available
- Weather and fog resistant

Specifications:

- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation: 3P
- Photocathode Type: GaAs
- Resolution: 64-72 lp/mm
- Signal to Noise Ratio: 25-30
- Figure of Merit: 1800 typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 26 mm
- Proshield Lens Coating Yes
- FOV: 40
- Range of Focus: 1 m to infinity
- Diopter Adjustment: -6 to +5
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1x3 V CR123A type battery
- Battery Life: 60 hrs
- Environmental Rating: Waterproof
- MIL-STD-810: No
- Operating Temperature: -40 to +50 C
- Storage Temperature: -50 to +70 C
- Dimensions: 160 x 150 x 75 mm 6.3" x 6" x 3"
- Weight: 0.5 kg / 1.1 lbs
