PVS7-WPT, Night vision Goggle ATN-CORPORATION

PVS7

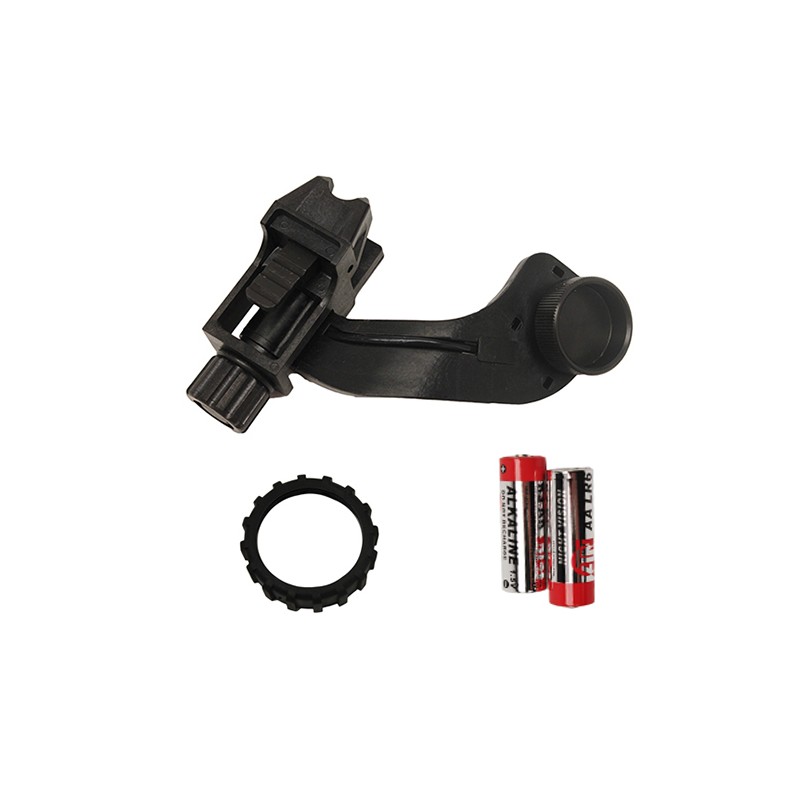

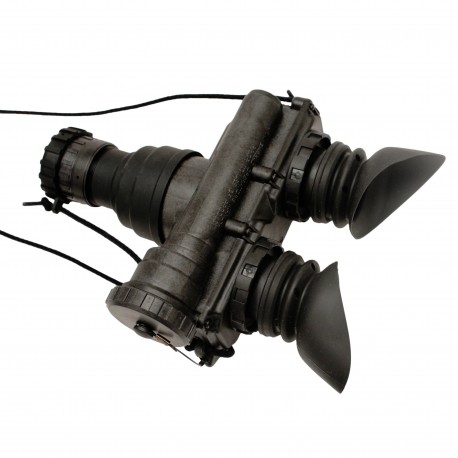

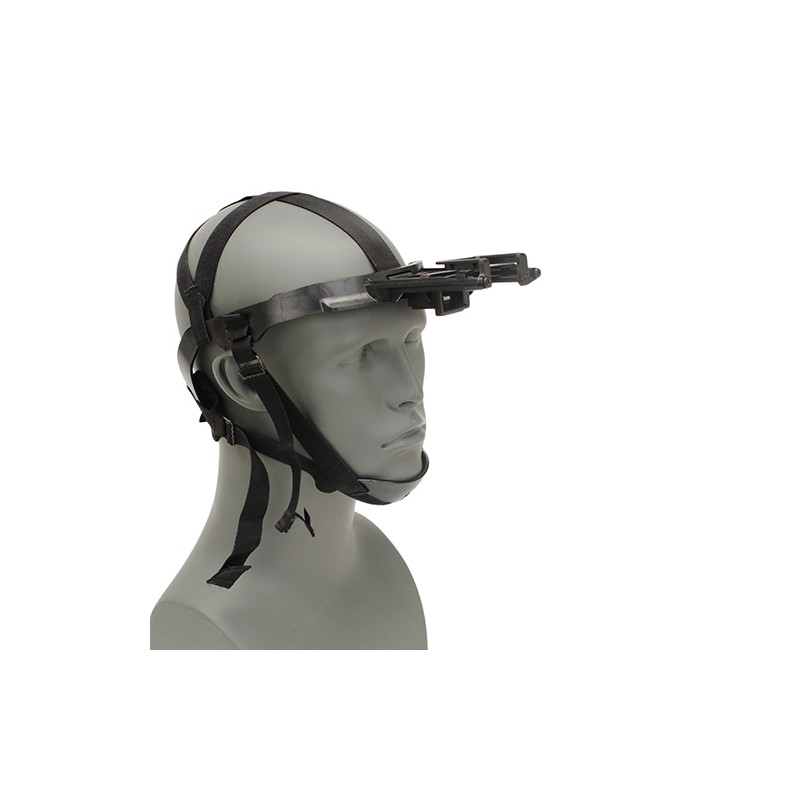

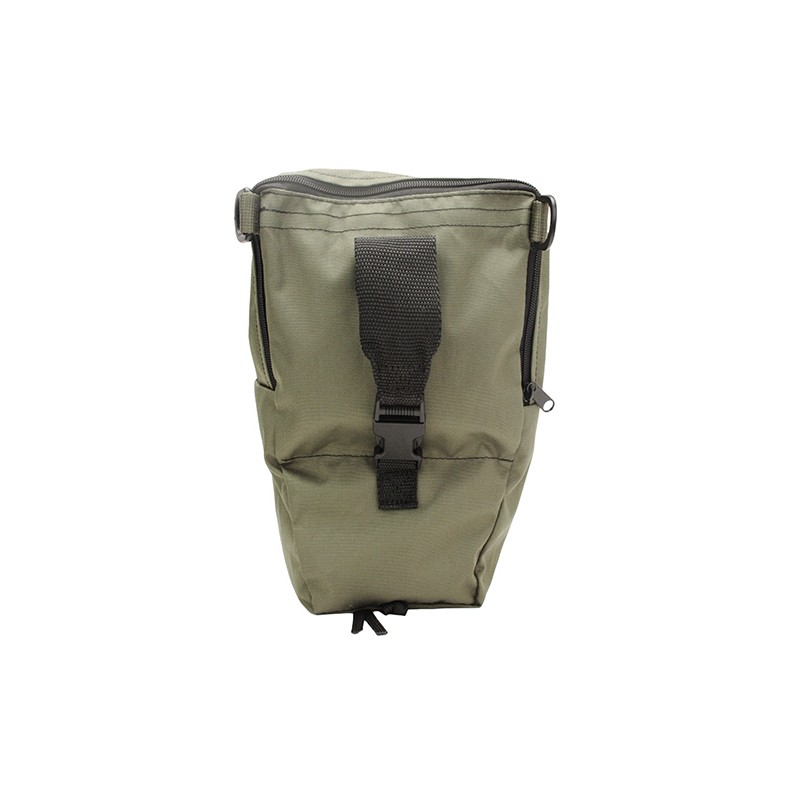

The ATN PVS7-WPT is a full-robust, dependable, high-performance Night Vision Goggles. This model is identical to AN/PVS7 model adopted as a standard issue to U.S. Army ground troops, designed to assist viewing and provide reliable service in the most unfavorable conditions. The ATN PVS7-WPT also incorporates an Infrared Illuminator with a momentary and continuous switching on function. Infrared operation and low-battery indicators are displayed within the user's field of view. Just like the AN/PVS7, the ATN PVS7-WPT Night Vision Goggles comes complete with a lightweight, fully adjustable military head strap that allows for comfortable long-term use. Full U.S. Mil-Spec body with Goggles assembly, soft carrying case, demist shield, sacrificial filter for objective lenses, shoulder strap, head-mount assembly with 3 brow pads, lens tissue, neck cord and front lens cap. The ATN PVS7-WPT Night Vision Scope is an excellent choice for Law Enforcement such as SWAT and Special Operations teams.

Features:

- Standard Military Issue
- Multi-purpose: Handheld, head-mounted, helmet-mounted
- Lightweight
- Equipped with momentary or continuous IR switch
- Internal low battery and IR indicators
- Combat proven
- Waterproof

Specifications:

- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation: HPT
- Photocathode Type: Multi - Alkali
- Resolution: 54-72 lp/mm
- Signal to Noise Ratio: 16-24
- Figure of Merit: 1600 Typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 26 mm
- Proshield Lens Coating: Yes
- FOV: 40
- Range of Focus: 0.25 m to infinity
- Diopter Adjustment: -6 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes (in FOV)
- Low Battery Indicator: Yes (in FOV)
- Power Supply: 2x1.5 V AA type battery or 1x3 V BA-5567/U type battery
- Battery Life: 60 hrs
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -40 to +50 C
- Storage Temperature: -50 to +70 C
- Dimensions: 148 x 80 x 155 mm (5.8" x 3.1" x 6.1").
- Weight: 0.68 kg / 1.5 lbs
