ATN PVS14/6015-WPT, Night Vision MP ATN-CORPORATION

ATN PVS14/6015

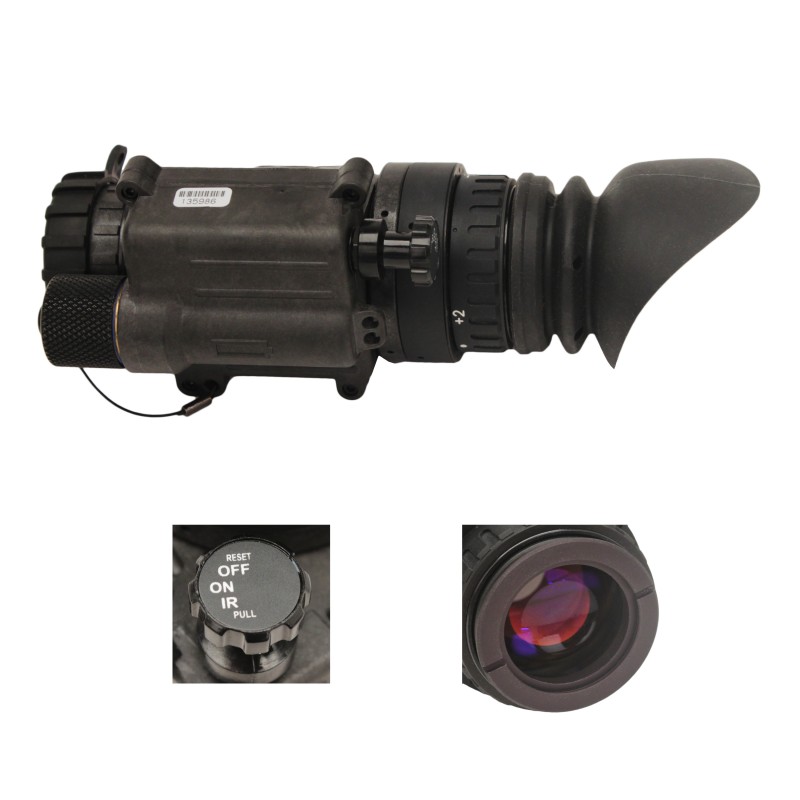

The ATNs PVS14/6015 are rugged, lightweight and versatile night vision monoculars, designed for the most demanding of nighttime applications. The PVS14/6015 can be handheld, head/helmet-mounted for hands-free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14/6015 is an outstanding choice for professional night vision applications.

Features:

- US Military design
- Multi-Purpose unit
- Handheld monocular

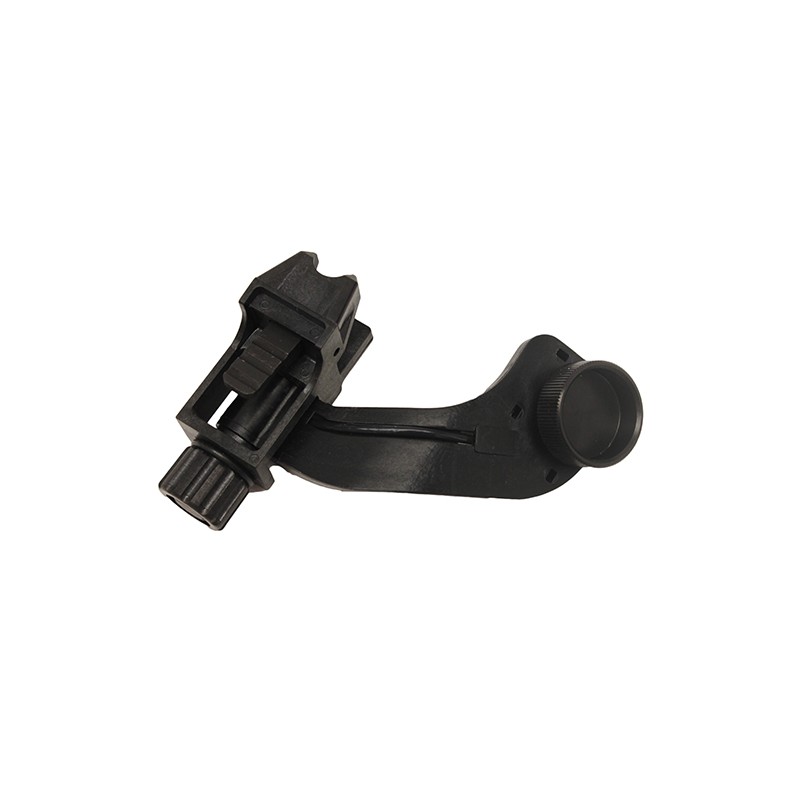

- Hands-free goggle (optional helmet mount)

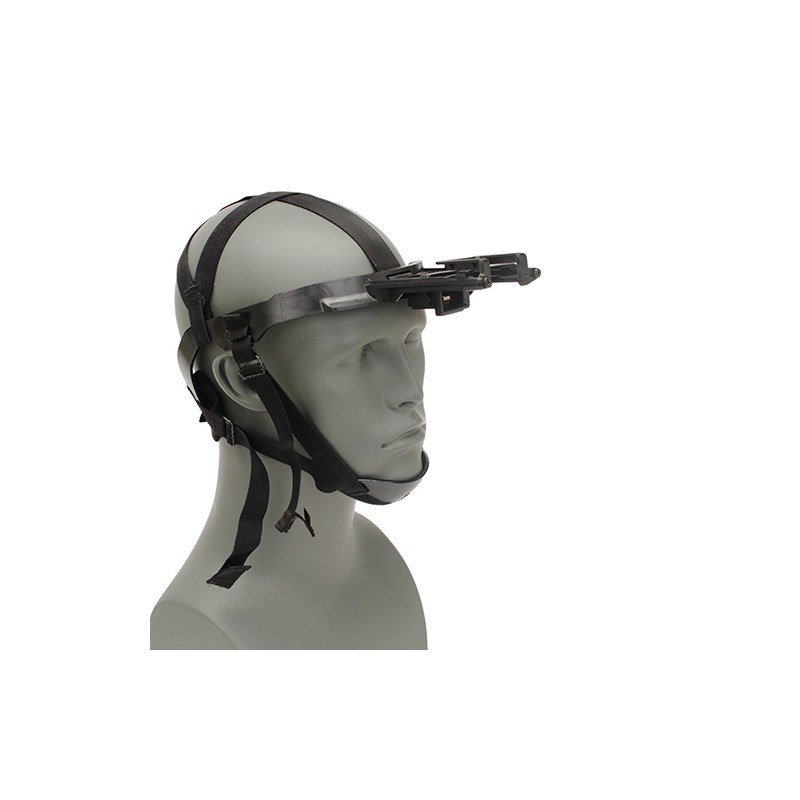

- Mil-Spec headgear

Specifications:

- Magnification: 1x ±0.03
- Lens System: 27mm; F1.2
- Proshield Lens Coating: Yes
- Field of View: 40°
- Range of Focus: 0.25m to Infinity
- Diopter Adjustment: -5 to +2
- Controls: Direct
- Manual Gain Control: Yes
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 x 1.5 V AA Battery
- Battery Life: 50 Hours
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -60°F to 120°F
- Storage Temperature: -60°F to 185°F
- Dimensions: 4.50" x 2" x 2.25"
- Weight: .78 lbs

Tube Specifications:

- High Quality WPT Image Intensifier Tube
- Generation: WPT
- Photocathode Type: Multi-Alkali
- Resolution: 45-54 (lp/mm)
- Signal to Noise, Minimum: 16-22
- MTTF (Mean Time Before Failure): 10,000 Hours
