PVS7-3W,Night vision Goggle Gen 3 ATN-CORPORATION

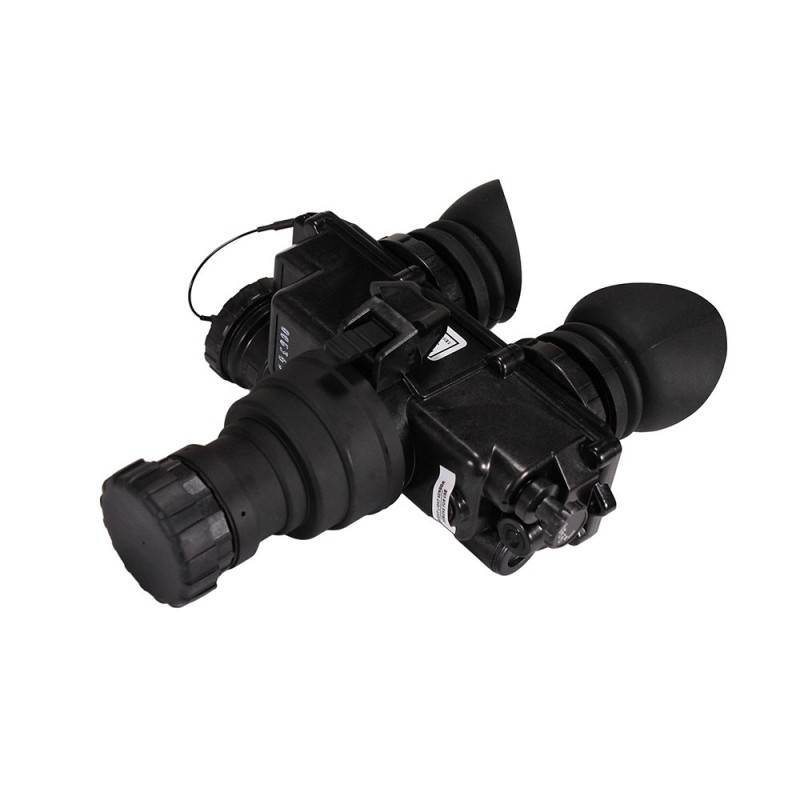

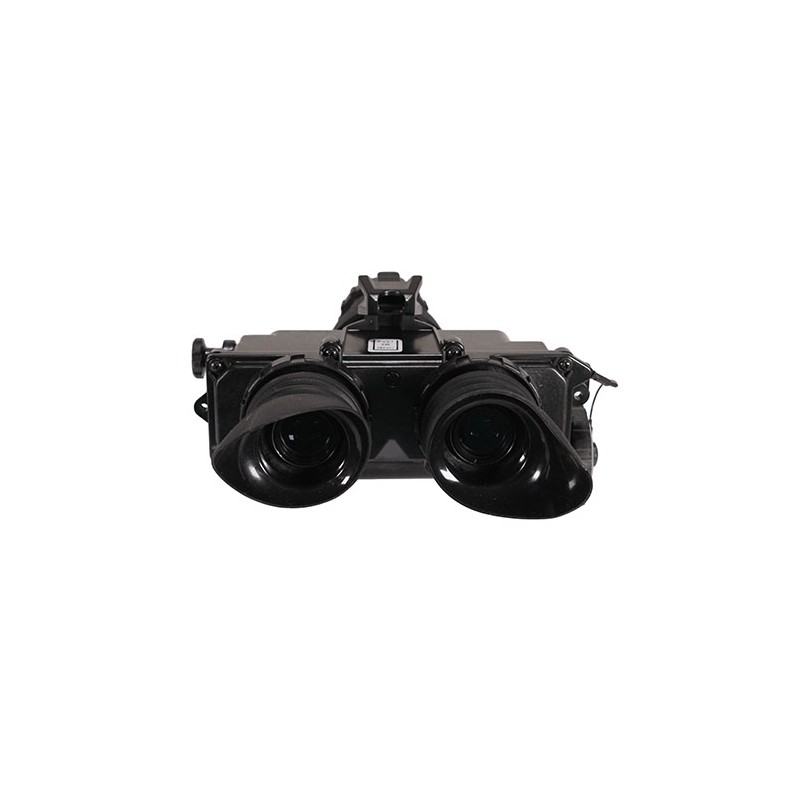

PVS7-3W 3rd-Gen Night Vision Binocular with Headgear, Matte Black

Set out in the field with the waterproof ATN PVS7-3W 3rd-Generation Night Vision Biocular. Optimized for military and law enforcement personnel, this 3rd generation night vision binocular allows you to see a night landscape hands-free by attaching to the included flip-up headgear and generates black and white images, thanks to white phosphor screen technology. The biocular configuration allows you the comfort of looking with both eyes while the f/1.2, 27mm multi-coated all-glass lens system provides a short close focus distance (9.8") and wide 40° angular field of view. To preserve the intensifier tube from harmful bright light exposure, the device features a bright light cutoff function, and to adjust image brightness it has an automatic brightness control. Another highlight is a built-in illuminator for casting extra infrared light on your targets in total darkness. You can protect the objective lens and the oculars with the included demist shields and a sacrificial filter. The fully adjustable headgear fits your head or helmet and provides a flip-up adapter for moving the biocular in and out of your line of sight on demand.

To enable you to venture almost anywhere at any time, this NVD is outfitted with a waterproof and submersible polymer body that is designed to withstand extreme temperatures. For ease of adjustment and non-slip operation, all the rings and adjusters are heavily knurled and to ensure comfortable contact with your face. To prevent leakage of light from the eyepieces, the oculars have extra-wide rubber winged eyecups.

Features:

Night Vision Sensor & IR Illuminator:

- 3rd-generation tube
- 64 lp/mm resolution
- 22 signal-to-noise ratio
- White phosphor screen creates black and white images
- Bright light cutoff
- Built-in wide-angle IR illuminator
- Automatic brightness control

Optical Performance:

- 1x magnification
- Compatible with optional lenses
- All-glass optics with polished lens multi-coating
- Biocular viewing allows using both eyes
- 40° wide angle of view
- f/1.2, 27mm lens system
- 9.8" minimum focus distance

Use and Handling:

- +2 to -6 diopter correction
- Built-in IR and low battery indicators
- Center focusing ring on the objective
- Adjustable interpupillary distance
- Headgear with flip-up adapter included

Construction Details:

- Lightweight and durable polymer body
- Knurled adjusters and rings for non-slip grip
- Accommodates two AA batteries or one BA-5567/U battery
- Wide, winged rubber eyecups
- Waterproof, submersible to 3.3' for 30 minutes

Specifications:

- Intensifier Tube: 3rd Generation GaAs Photocathode 22 SNR 64 lp/mm Resolution White Phosphor Screen
- Magnification: 1x
- Angle/Field of View: 40°
- Lens System: f/1.2, 27mm
- Minimum Focus Distance: 9.80"
- Interpupillary Adjustment: 52.0-71.0 mm
- Dioptric Correction: +2 to -6
- Infrared Illuminator: Yes
- Battery / Runtime: 2 x AA alkaline batteries / IR Off: 89-160 hours; IR On: 68-123 Hours, 1 x BA-5567/U battery / IR Off: 47-85 hours; IR On: 36-65 hours
- Weatherproofing: Waterproof, submersible to 3.3' / 1.0 m for 30 minutes
- Operating Temperature: -40 to 122°F
- Storage Temperature: -58 to 158°F
- Color: Black
- Dimensions: 6.40" x 6" x 3"
- Weight: 23.90 oz
