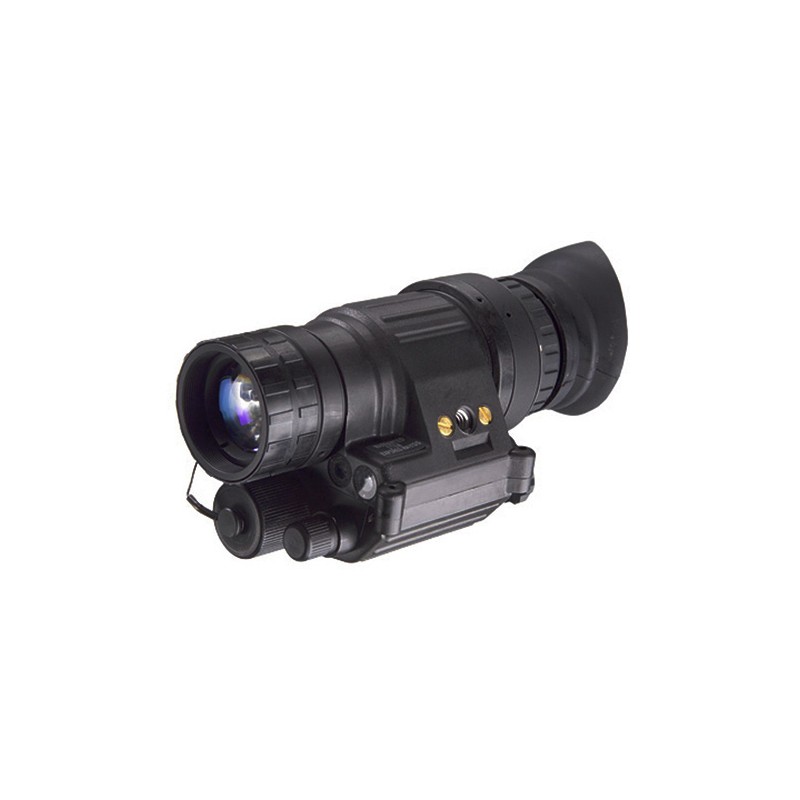

ATN PVS14-3P,Night Vision Multi-Purpose ATN-CORPORATION

PVS14

The ATNs PVS14 are rugged, lightweight and versatile night vision monoculars, designed for the most demanding of nighttime applications. The PVS14 can be handheld, head/helmet-mounted for hands-free usage or adapted to cameras/camcorders. Originally designed for the U.S. military, these units are of the highest quality in optics, design and functionality. The ATN PVS14 is an outstanding choice for professional night vision applications.

The industry leading ITT Pinnacle Image Tubes utilize a gated power supply providing truly outstanding performance in high-light or lightpolluted areas. The Pinnacle Tubes with gated power supply minimize any Halo effects.

Features:

- US Military design
- ITT Pinnacle Image Intensifier Tubes
- Multi-Purpose unit
- Handheld monocular
- Hands-free goggle (optional helmet mount)
- Mil-Spec headgear
- Manual Variable Gain Control

Specifications:

- Magnification: 1x ±0.03
- Lens System: 27mm; F1.2
- Proshield Lens Coating: Yes
- Field of View: 40°
- Range of Focus: 0.25m to Infinity
- Diopter Adjustment: -5 to +2
- Controls: Direct
- Manual Gain Control: Yes
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 x 1.5 V AA Battery
- Battery Life: 50 Hours
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -60°F to 120°F
- Storage Temperature: -60°F to 185°F
- Dimensions: 4.50 x 2 x 2.25
- Weight: .78 lbs
- Color: Black

Tube Specifications:

- High Quality 3P Gen Image Intensifier Tube
- Description: Pinnacle
- Generation: 3
- Photocathode Type: Thin-Filmed/Auto-Gated
- Resolution: 64 - 72 (lp/mm)
- Signal to Noise Ratio: 24 Typical
- Figure to Merit: 1800 Typical
- Photocathode Sensitivity: 2000-2800
