NVG7-WPT, Night vision Goggle ATN-CORPORATION

NVG7 Goggles

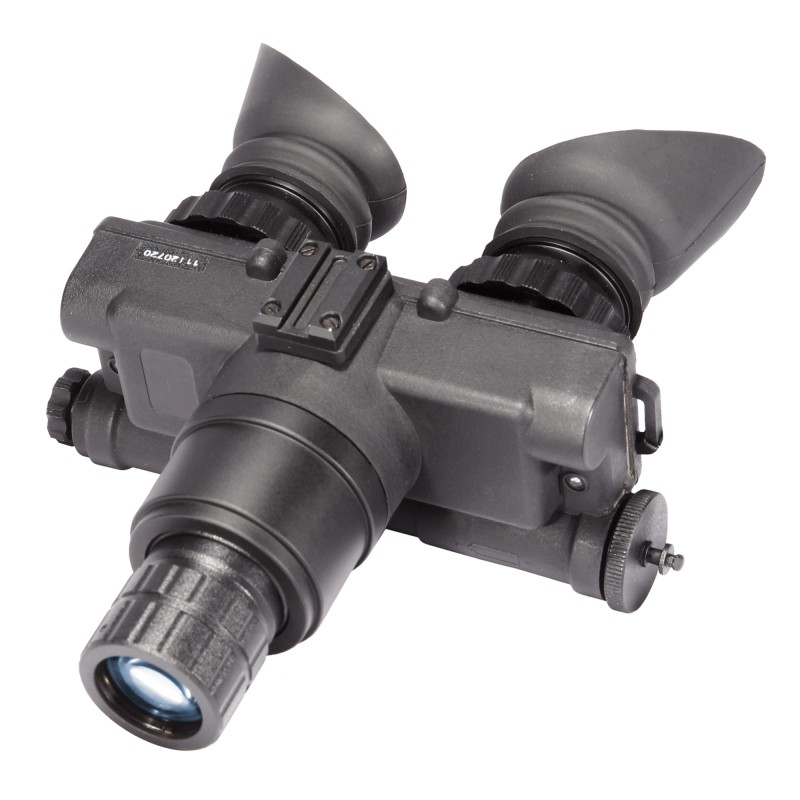

ATN NVG7-WPT Night Vision Goggles


Lightweight, rugged and a top notch performer the NVG-7-WPT is an exceptional choice for hands-free usage. This model features high resolution image intensifier, auto-brightness, and bright source shut-off.
NVG-7-WPT goggles also have a built-in IR for total darkness with indicator ON light within the FOV and flip. One CR123A, case and manual are included. ATN NVG-7-WPT is an excellent choice for hands-free night vision applications.

Features:

- Lightweight, compact rugged Goggle system
- Multi-purpose: Hand-held, head-mounted or helmetmounted
- Comfortable, flip-up headgear
- Multi-coated all-glass optics
- Wide angle infrared illuminator
- Adjustable Interpupillary Distance
- Optional 3x, 5x and 8x lenses available
- Weather and fog resistant

Specifications:

Total Darkness IR System:Yes
"SMART" Technology: No
Multi-Purpose System: No
IIT Generation: WPT
Photocathode Type: Multi-Alkali
Resolution:45-54 lp/mm
Signal to Noise Ratio:18-24
Figure of Merit
MTTF - Mean Time Before Failure: 10,000 hours
Magnification:1x
Lens System: F1.2, 26 mm
Proshield Lens Coating:Yes
FOV:40
Range of Focus: 1 m to infinity
Diopter Adjustment: -6 to +5
Controls: Direct
Automatic Brightness Control: Yes
Bright Light Cut-off: Yes
Automatic Shut-off System: Yes
Infrared Illuminator: Yes
IR Indicator: Yes
Low Battery Indicator: Yes
Power Supply: 1x3 V CR123A type battery
Battery Life: 60 hrs
Environmental Rating: Waterproof
MIL-STD-810: No
Operating Temperature: -40 to +50 C
Storage Temperature: -50 to +70 C
Dimensions: 160 x 150 x 75 mm (6.3" x 6" x 3")
Weight: 0.5 kg / 1.1 lbs
